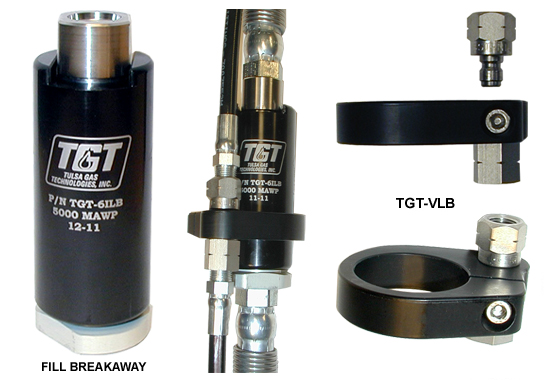

TGT Breakaways

TGT-6ILB Features:
Easily installed, light and compact
Durable stainless steel and aluminum construction
May be reconnected, allowing components to be used again, which reduces costs
Minimizes the release of gas in case of a drive-away incident
Maximizes flow for all NGV-1 Type 1 and Type 2 nozzles
Reduced Size and Weight - To allow for more applications where size may be a concern
Individually tested and inspected, imprinted with serial numbers for tracing
Operating pressure to 3,600 psi (248 bar)
Minimum Flow Rate: 2000 SCFM @ 3000 psid
Temperature Range: -40 C to 85 C (-40 F to 185 F)
Disconnection Force - 150 lbs. (668 N)
Field Assembly Instruction for BLUE Breakaway (pdf format)
Field Assembly Instruction for BLACK Breakaway (pdf format)
