TGT/Dynetek High Capacity Light-Weight CNG Trailer


Tulsa Gas Technologies and Dynetek Industries Ltd. ( www.dynetek.com ) have teamed up to develop a High Capacity Lightweight CNG Trailer. This trailer has been specially designed for gas utilities, with a means of temporary gas supply. With a GVW of less than
10,000 lbs, this trailer is like a “mini-tube trailer”, which is easy to deploy in the event of pipeline interruptions. It can also be used to deliver natural gas as a temporary fuel supply for special events or new construction. Download Trailer Brochure pdf format (467K)

Specifications:

Length: 23'
Width: 8.4'
Overall height: 78.5"
Height from ground to hitch attachment: 16.2" (adjustable)
Hitch Type: 2 5/16" Ball Hitch or 3" Lunette Eye Hitch
Rated Trailer Capacity: 10,000 lbs
Full 12 Cylinder Trailer weight: 9260 lbs
Empty weight: 7935 lbs
Tongue weight: 750 - 1000 lbs

- Temporary supply of natural gas to your customers
- Emergency supply during pipeline interruptions
- Temporary fuel supply to special events for power and heat
- Service for fleets where infrastructure does not exist
- Can be towed by a pickup with a 10,000 lb towing capacity
- US DOT and Transport Canada approved (DOT E13173 and TC-SU-6039)
- Can be configured with 4, 8 or 12 cylinders for 10,000, 20,000 or 30,000 scf.

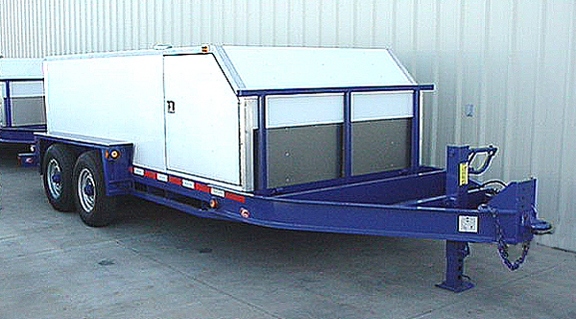

Tulsa Gas Technologies 16,000 SCF Capacity CNG Trailer

    Specifications:
Trailer Weight
    11,820 pounds empty
    12,560 pounds full of gas
         740 net weight of gas
Trailer Length 23'
Trailer Deck Length 17'
Trailer Deck Width 80.5"
Trailer Overall Width 102"
GVWR 14,000lbs
Capacity 16,000 SCF
4 wheel Electric Brakes
3 Screw Jack to stabilize trailer when not connected to vehicle

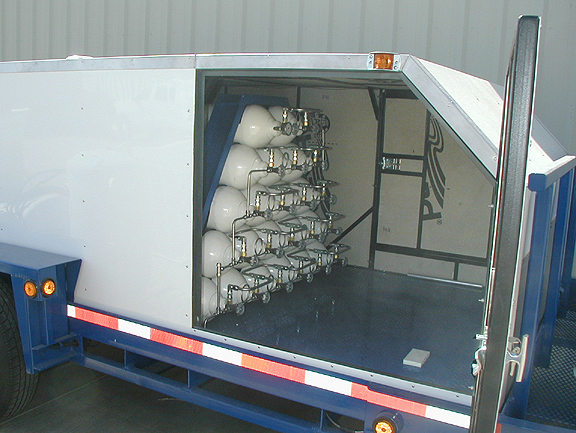

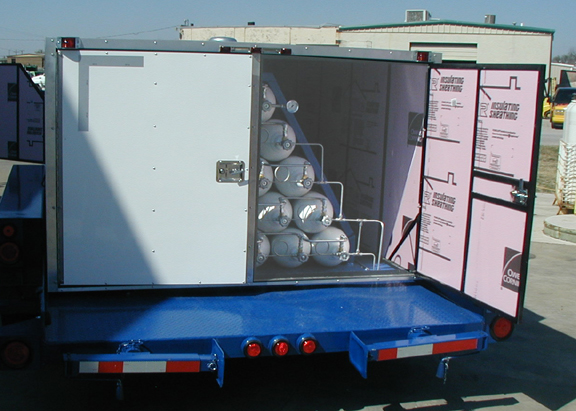

20 Bottle Trailer Also Available (40 Bottle Shown)

Download Trailer Brochure pdf format (358K)











Home     More Photos
